SPECIFICATIONS
Brand Name: WINXU
Choice: yes
High-concerned chemical: None
Origin: Mainland China
Signal output voltage: 1.1V - 4.1V
Type: Throttle
Wire length: 1.5m
battery voltage: 24V / 36V / 48V / 60V

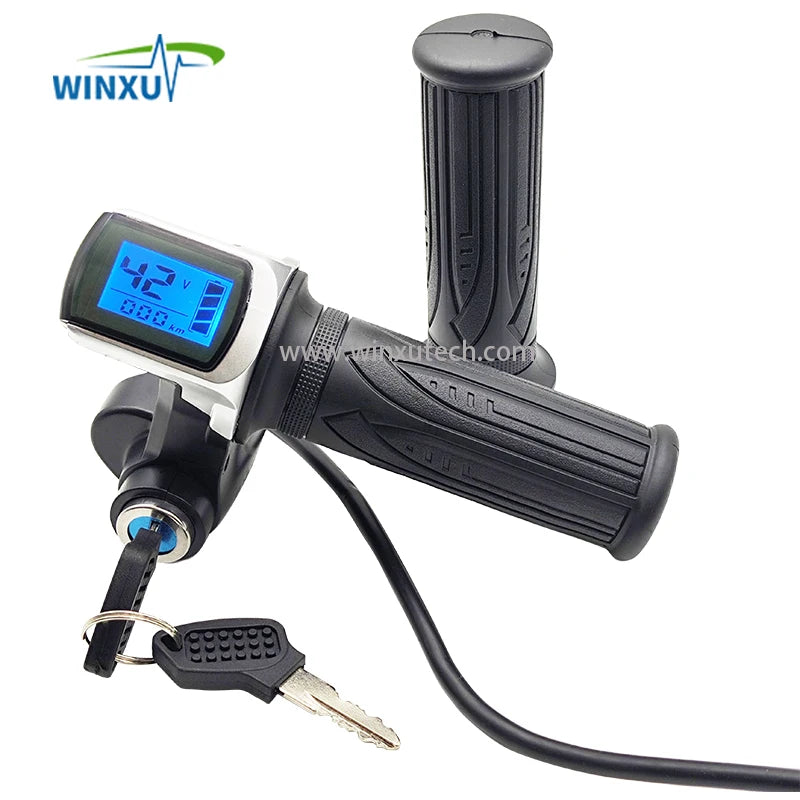

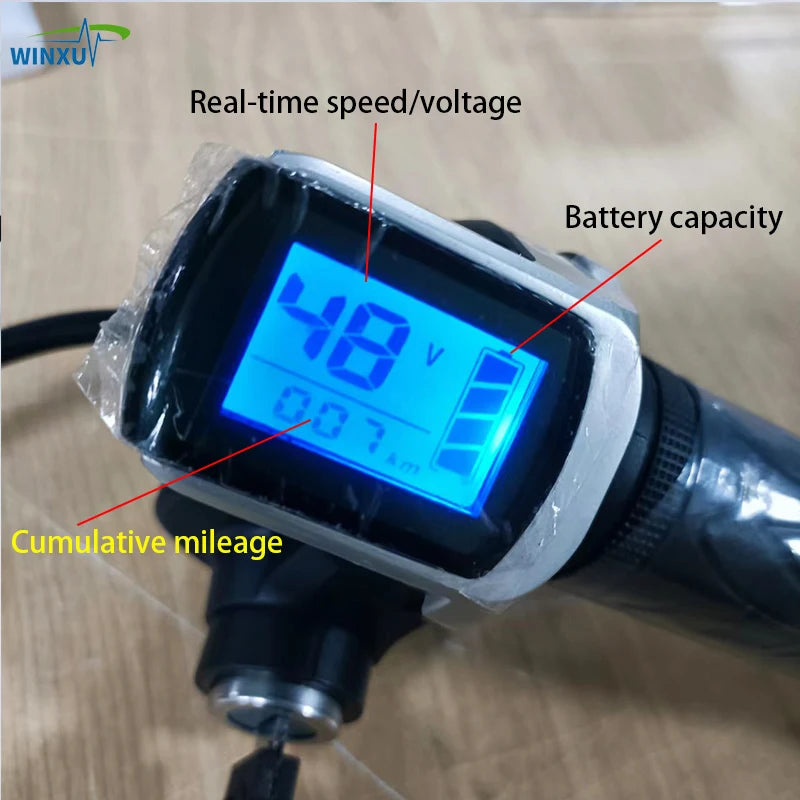

product name: LCD display throttle
semi_Choice: yes
sensor type: Hall sensor
throttle type: Twist throttle
working voltage: 5V

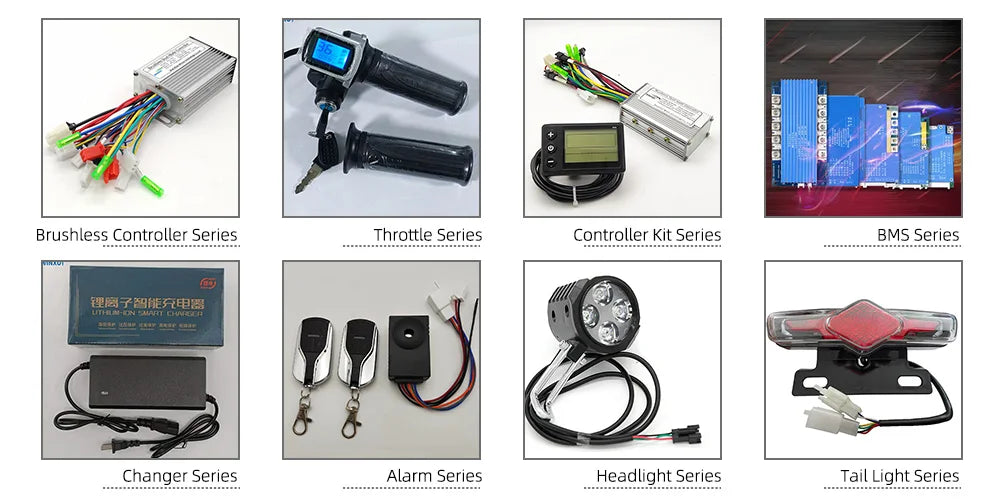

For more products, please visit our shop
WinXu Tech Hall Throttle Video Display
Universal Hall Throttle for E-bike
24V 36V 48V 60V multi-voltage type
Support lithium battery and lead-acid battery

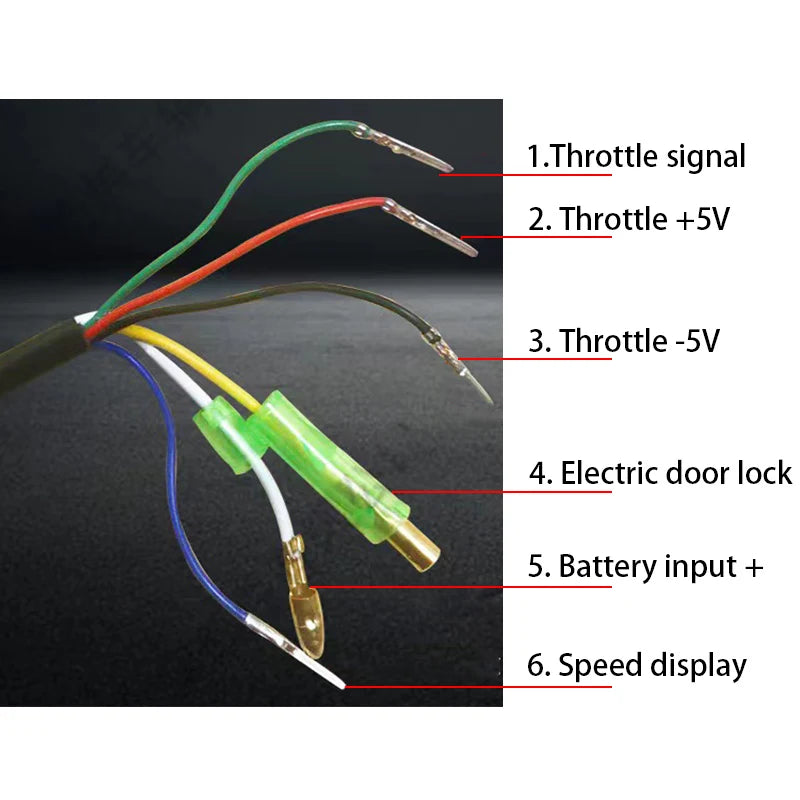

Throttle wiring diagram description
1. Throttle signal
The wire connect the signal wire on the controller.
2. Throttle +5V
The wire is connected to the throttle +5V voltage on the controller.
3. Throttle -5V
The wire is connected to the throttle negative on the controller.
4. Electric door lock
The wire is connected to the door lock wire on the controller.
5. Battery input +
The wire is connected to the controller power input + or battery +
6. Speed display
The wire is connected to the LCD speed display wire on the controller or the blue phase wire of the motor.
tips
This throttle use phase wire speed measurement design, please connect the LCD throttle speed display wire to the phase wire meter on the controller or the blue phase wire of the motor.

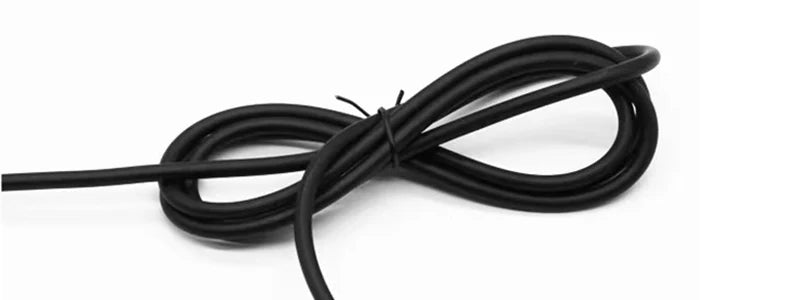

Throttle with 1.5 meter wire
Product Details
High quality material, perfect functional compatibility
