SPECIFICATIONS
Brand Name: kun ray
High-concerned chemical: None

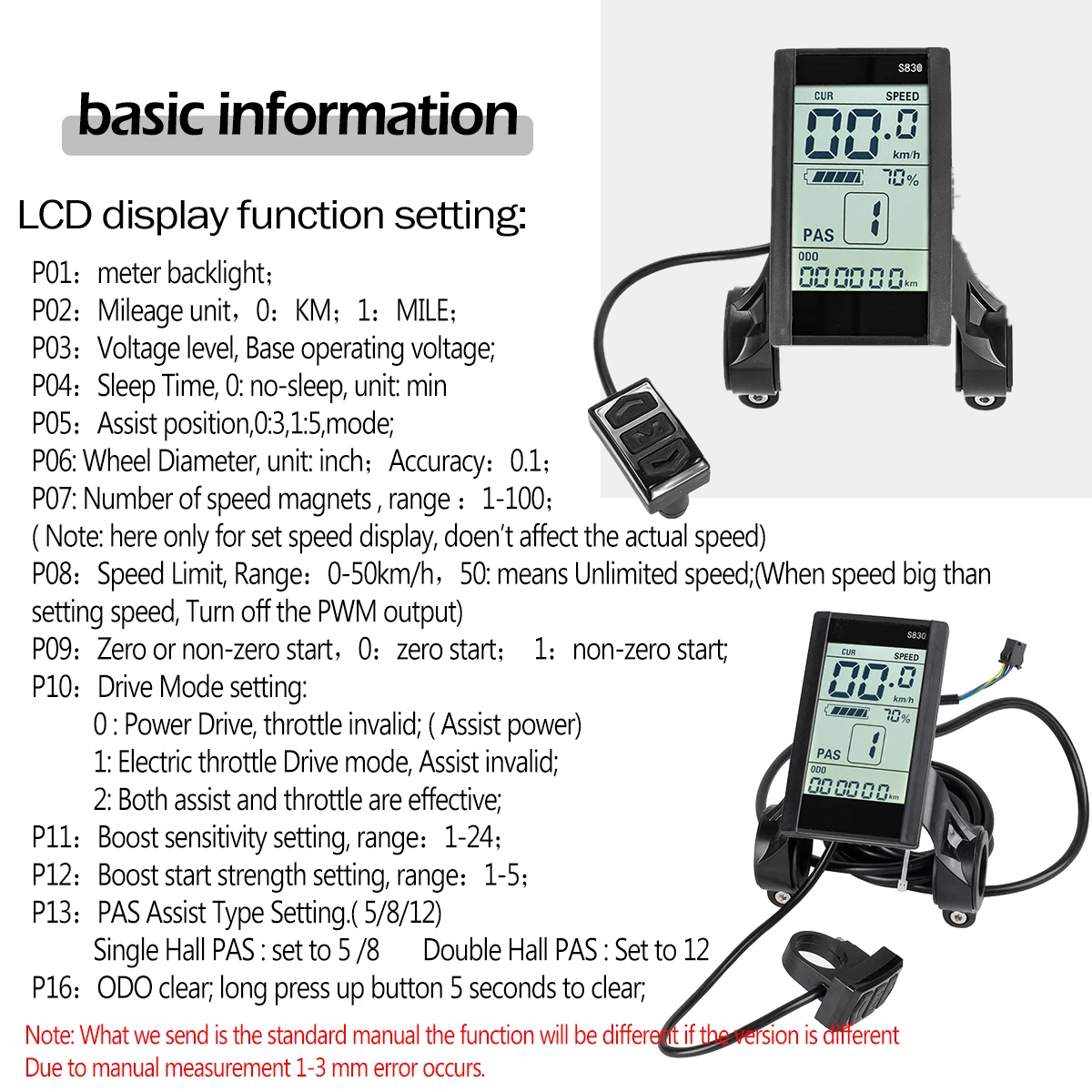

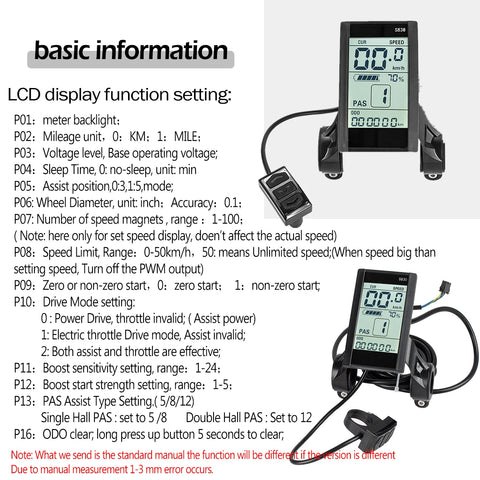

LCD Display: S830 USB Port/S966 NFC
Origin: Mainland China
Rated Power: 500W
Type: Controller,Brushless Controller with Display Kit
Voltage: 36V/48V/52V/60V
【ATTENYION】
1.To prevent the controller from being incompatible with your display, I suggest that you purchase the controller and display together :)
2. If you are not sure which one is right for you, please feel free to contact us.
3. The controller is a sine wave three-mode controller,must match the instrument used with the No.2 communication protocol.
【 Product parameters 】

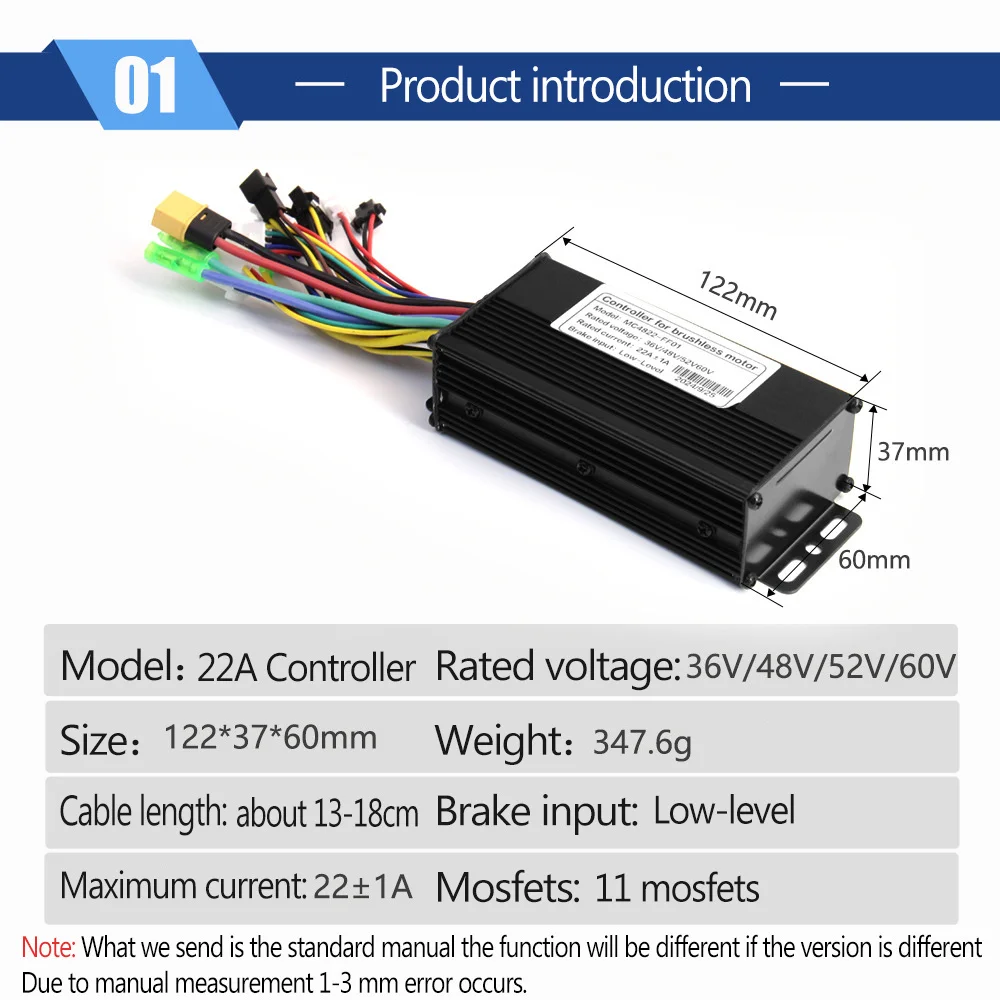

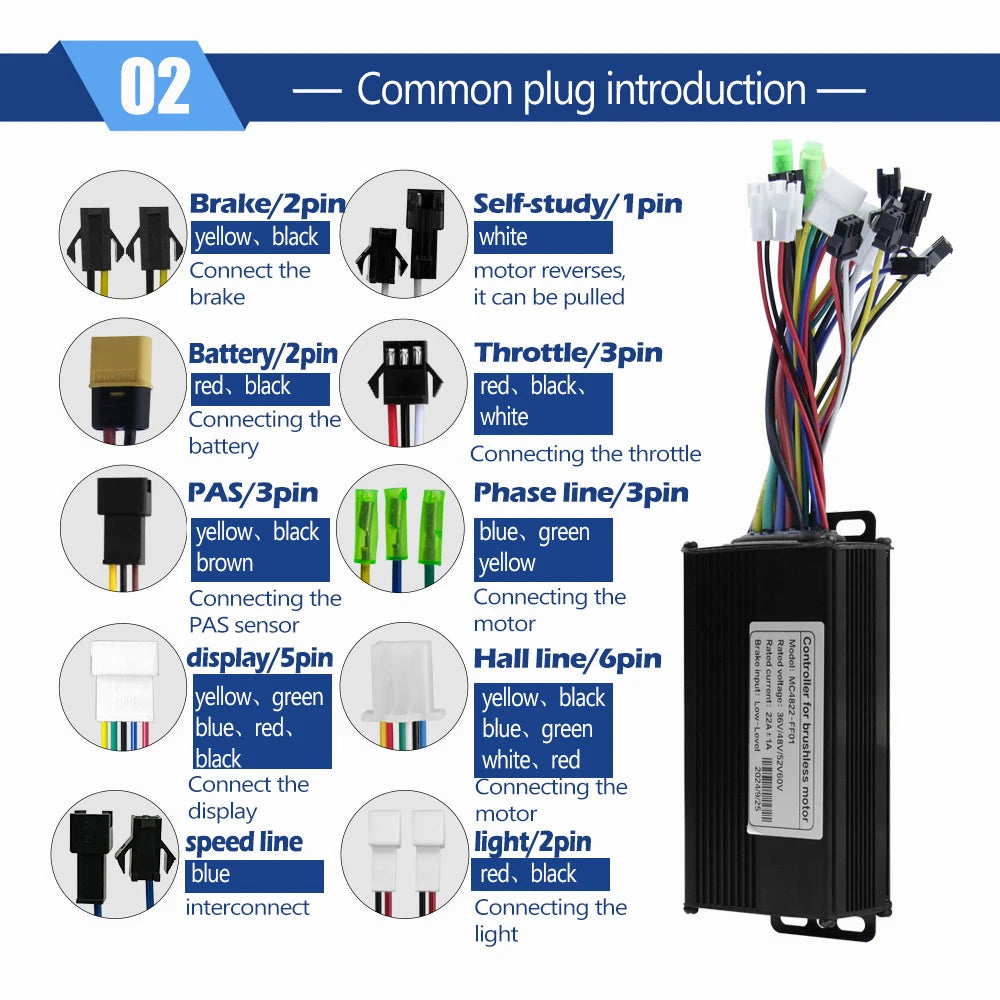

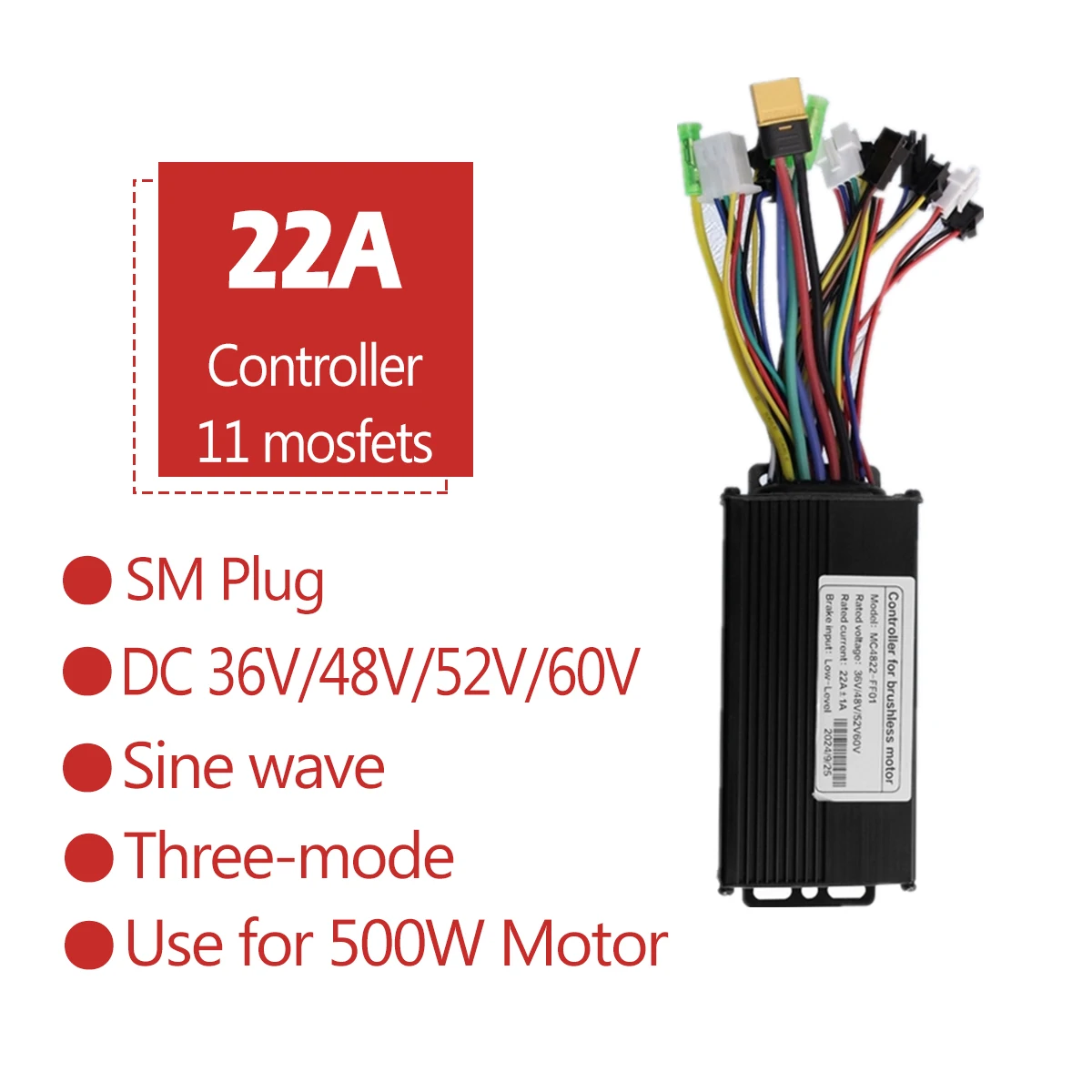

22AController(Sine wave Controller for 500W motor)
●Type: 22A Controller
●Size(L*W*H):About 122*60*37mm
●Rated Power:500W
●Mosfet:11Mosfet
●Booster:1:1
●Brakes:Low-Level
●Rated Voltage:DC36/48V/52V/60V
SM Controller line length:13-18CM
●Compatible with motors with or without Hall

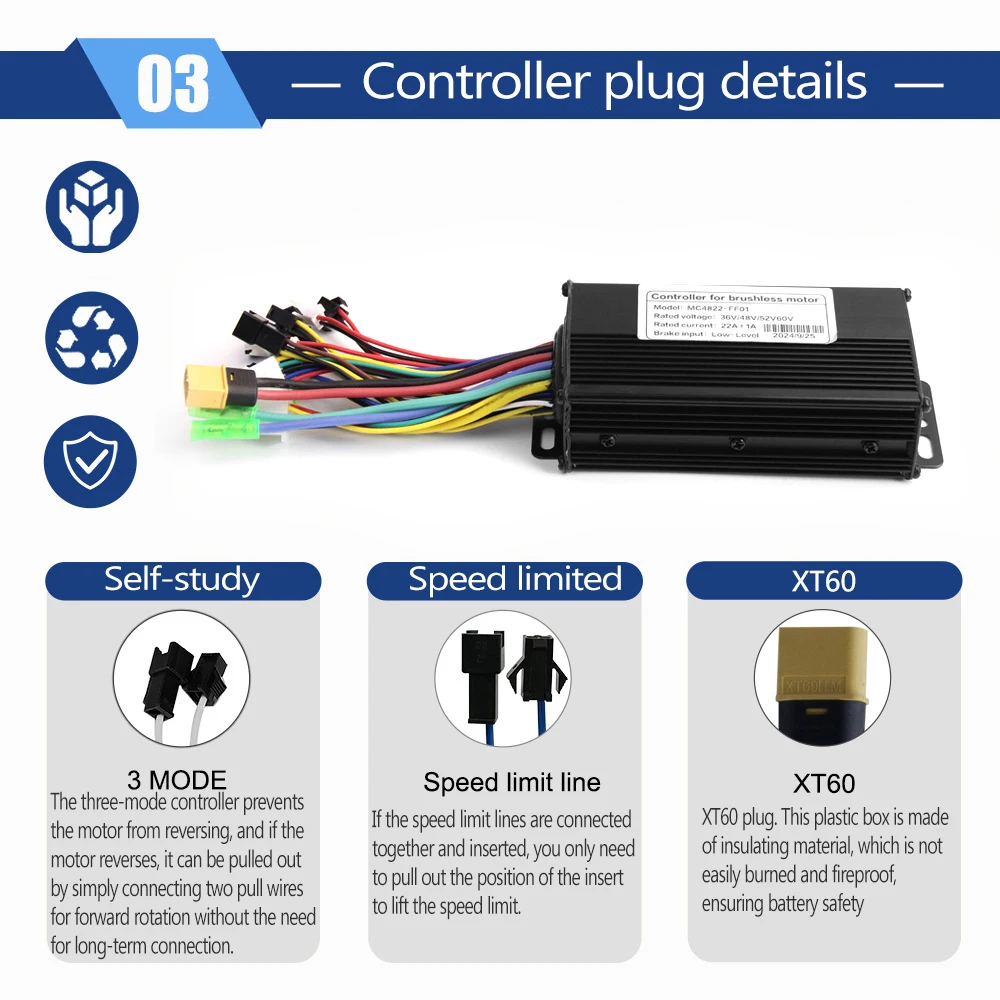

●With motor forward and reverse learning function
●Communication protocol: Adapts communication protocol 2

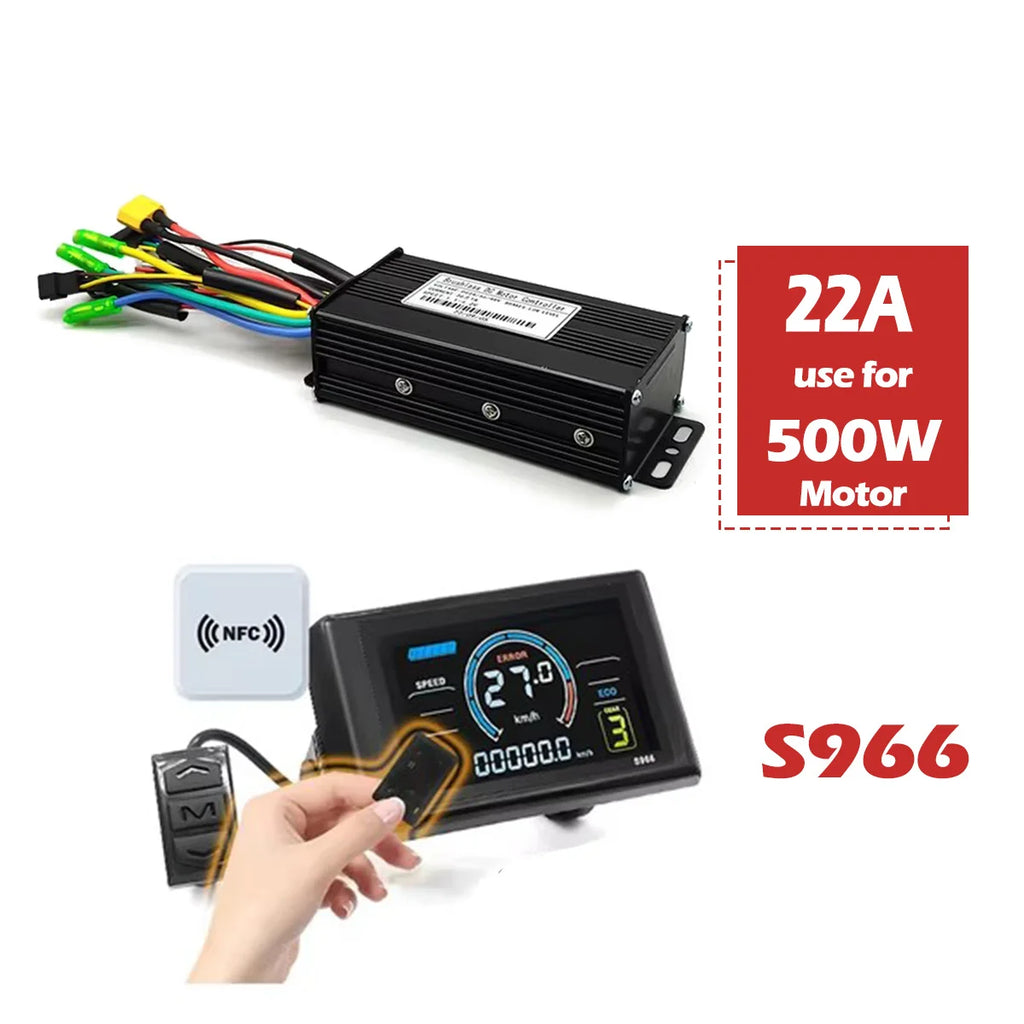

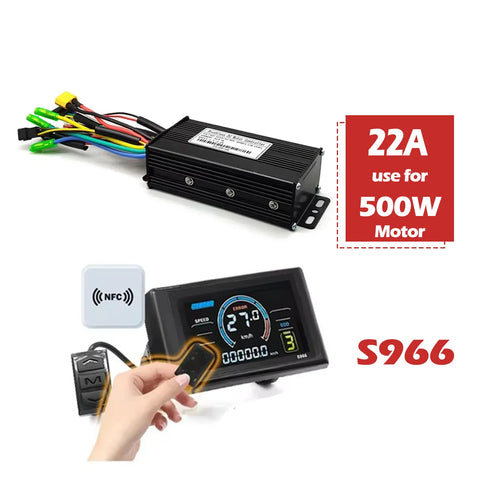

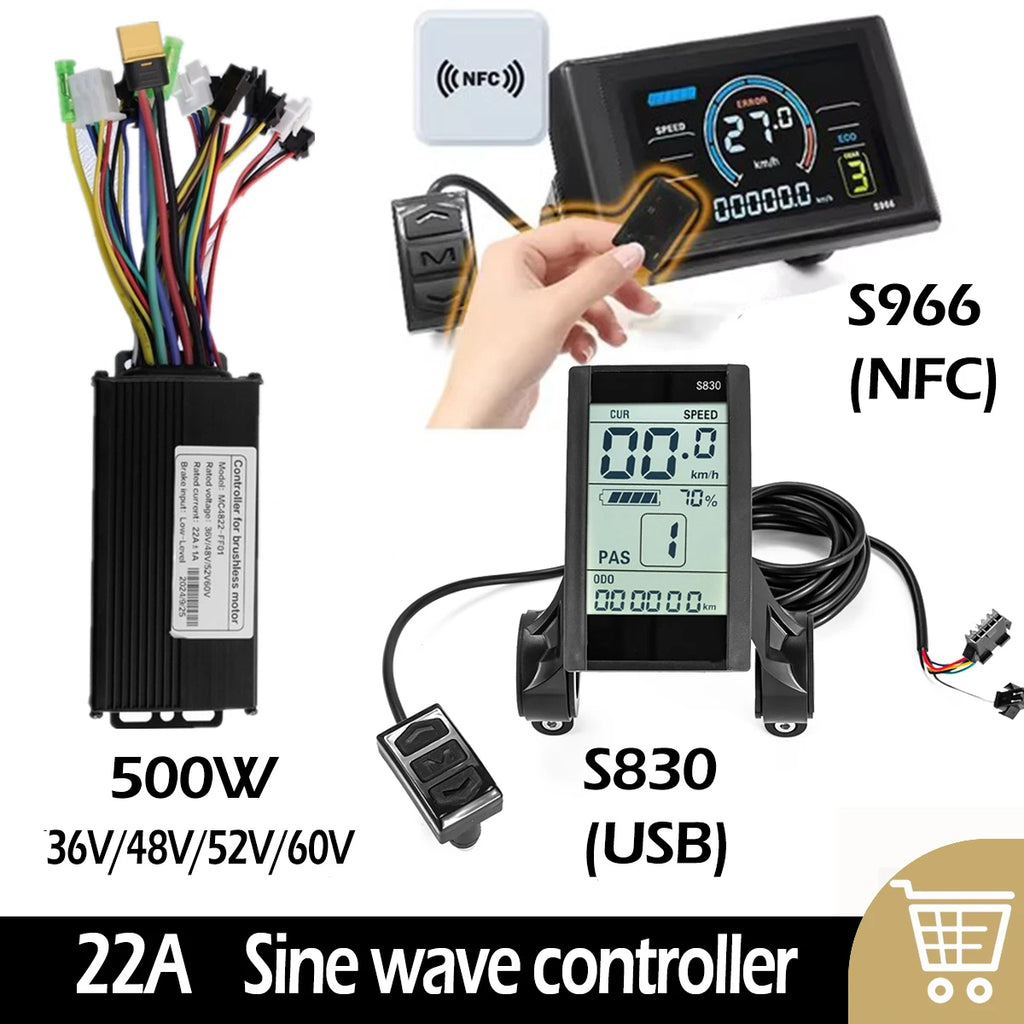

22A Controller for 500W Motor:

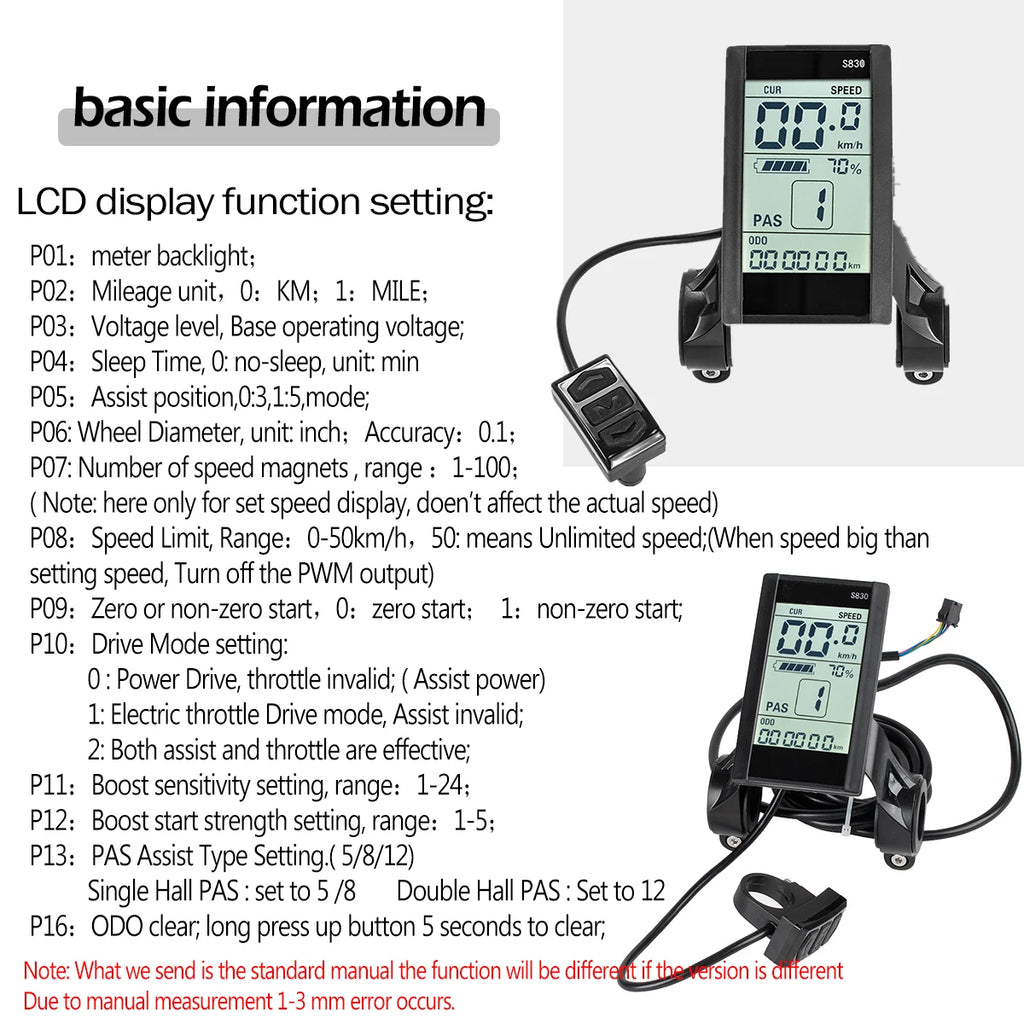

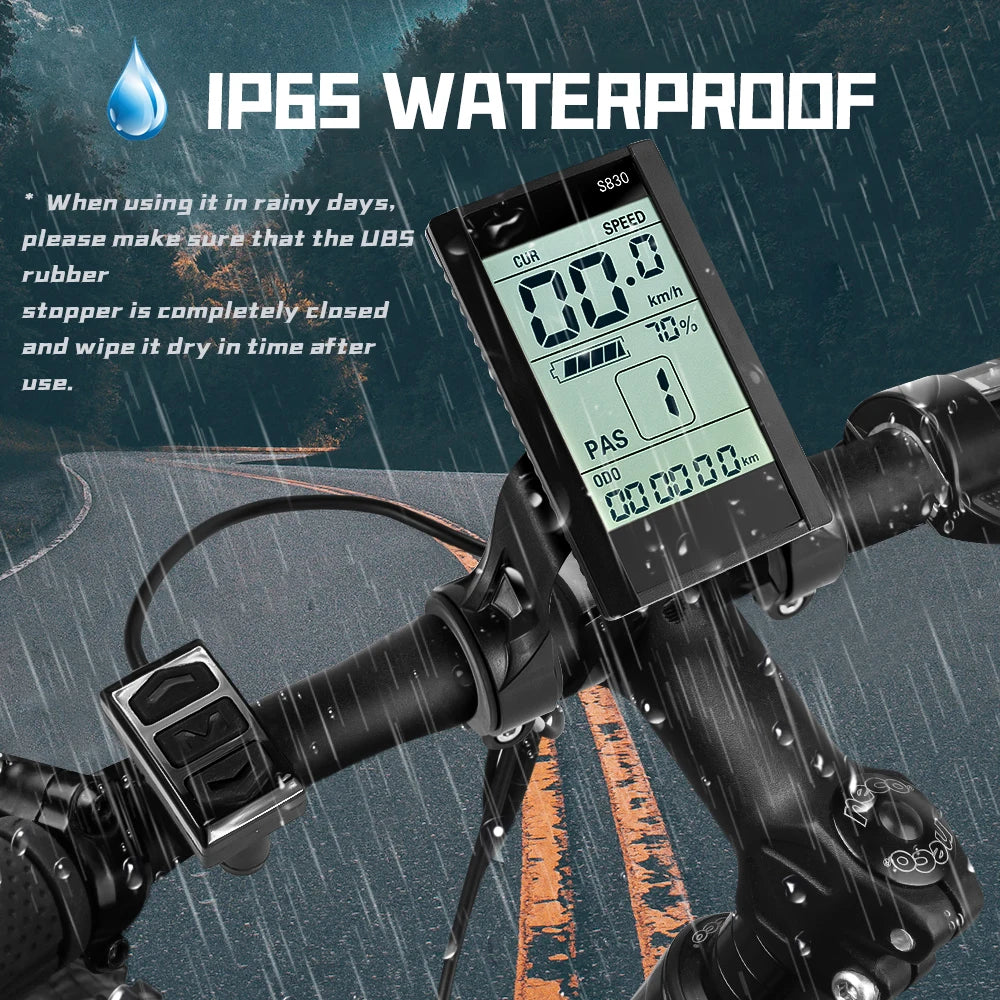

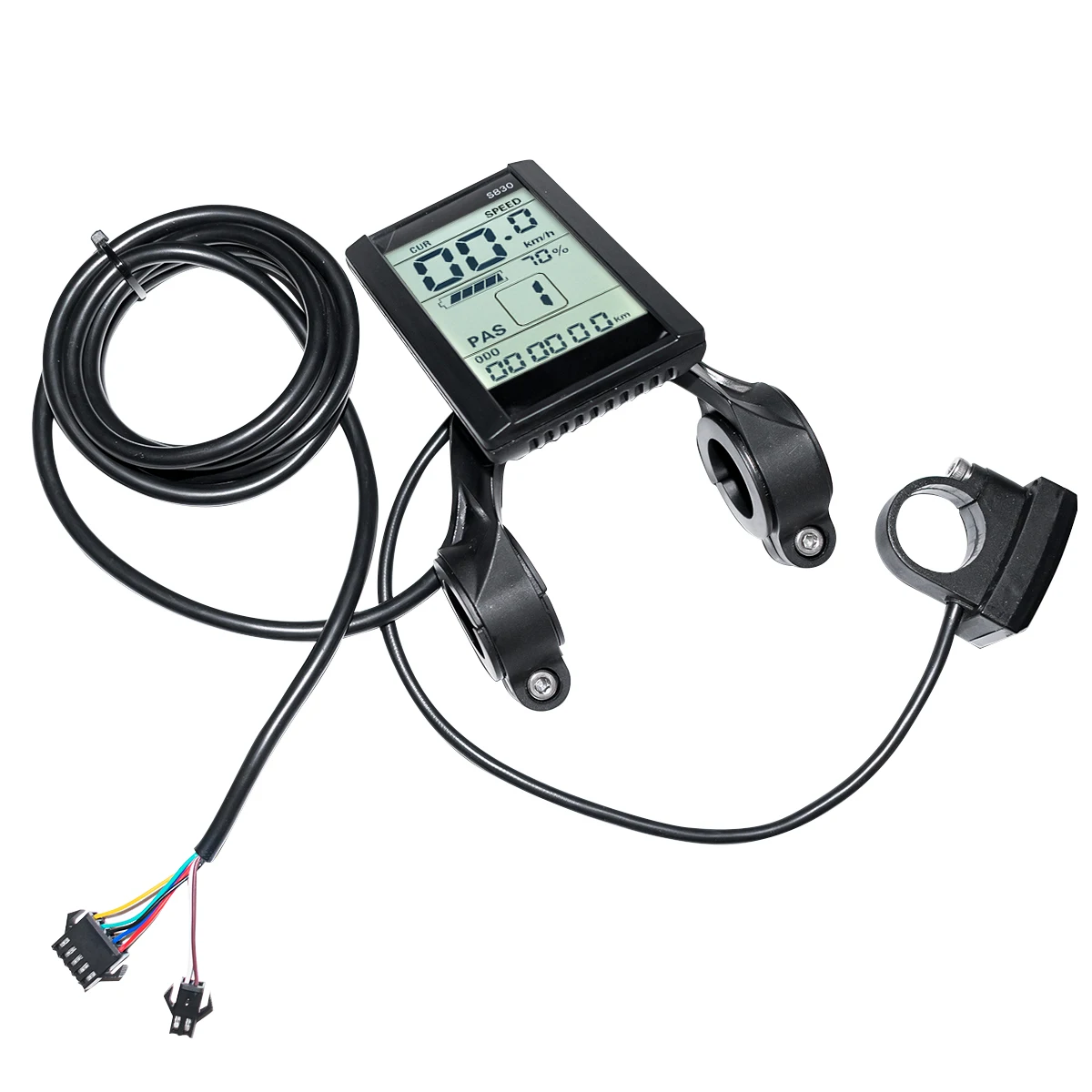

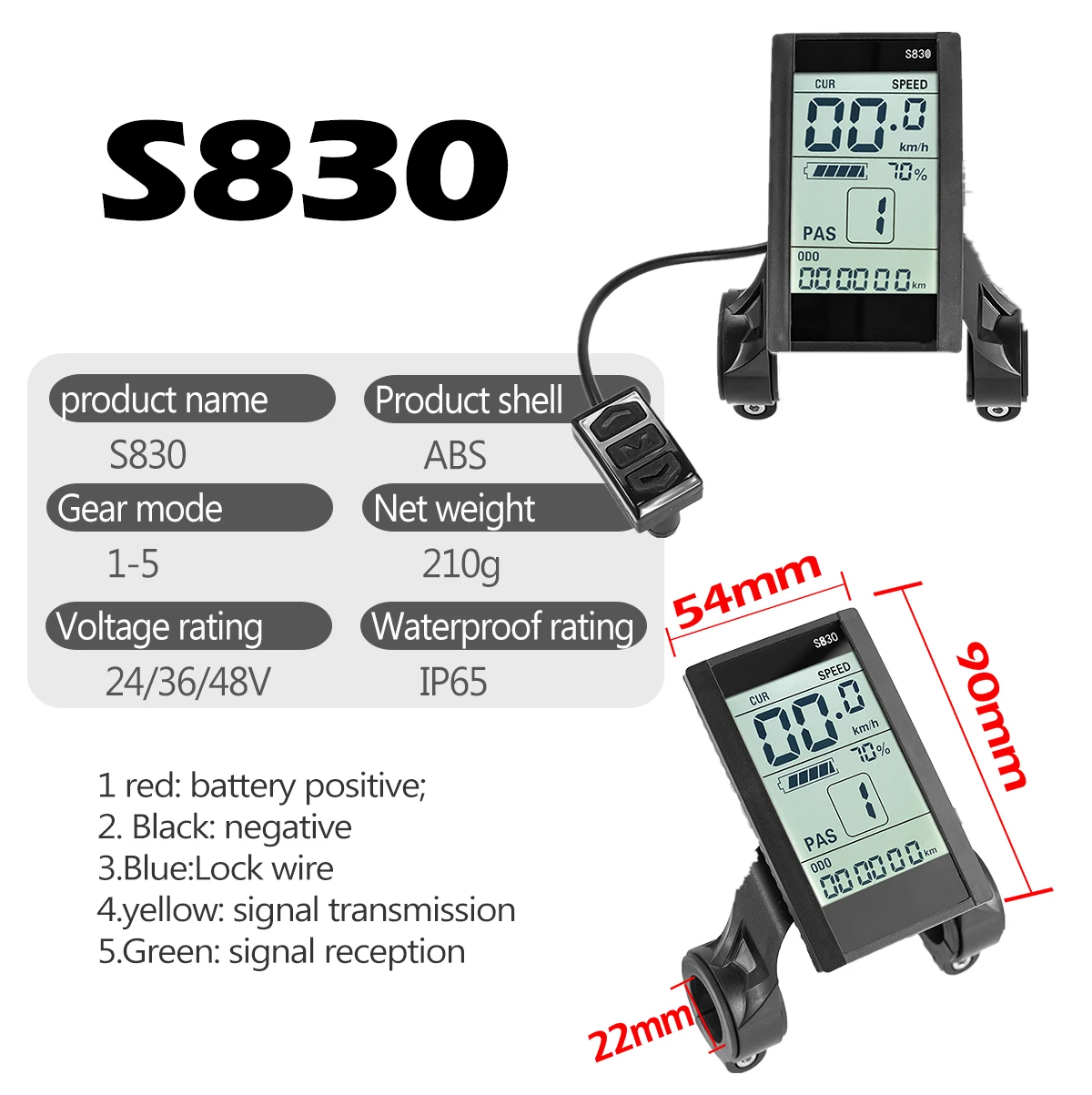

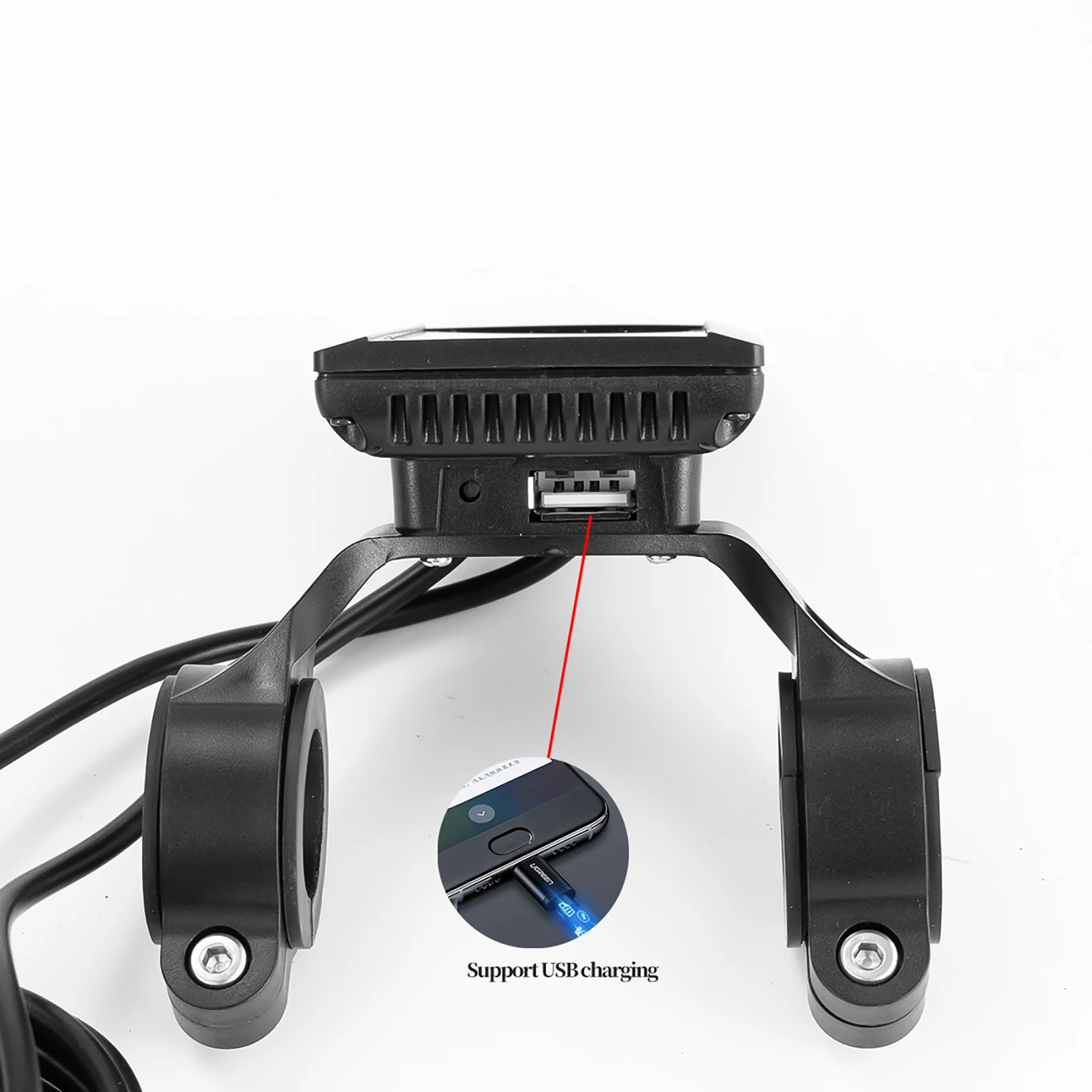

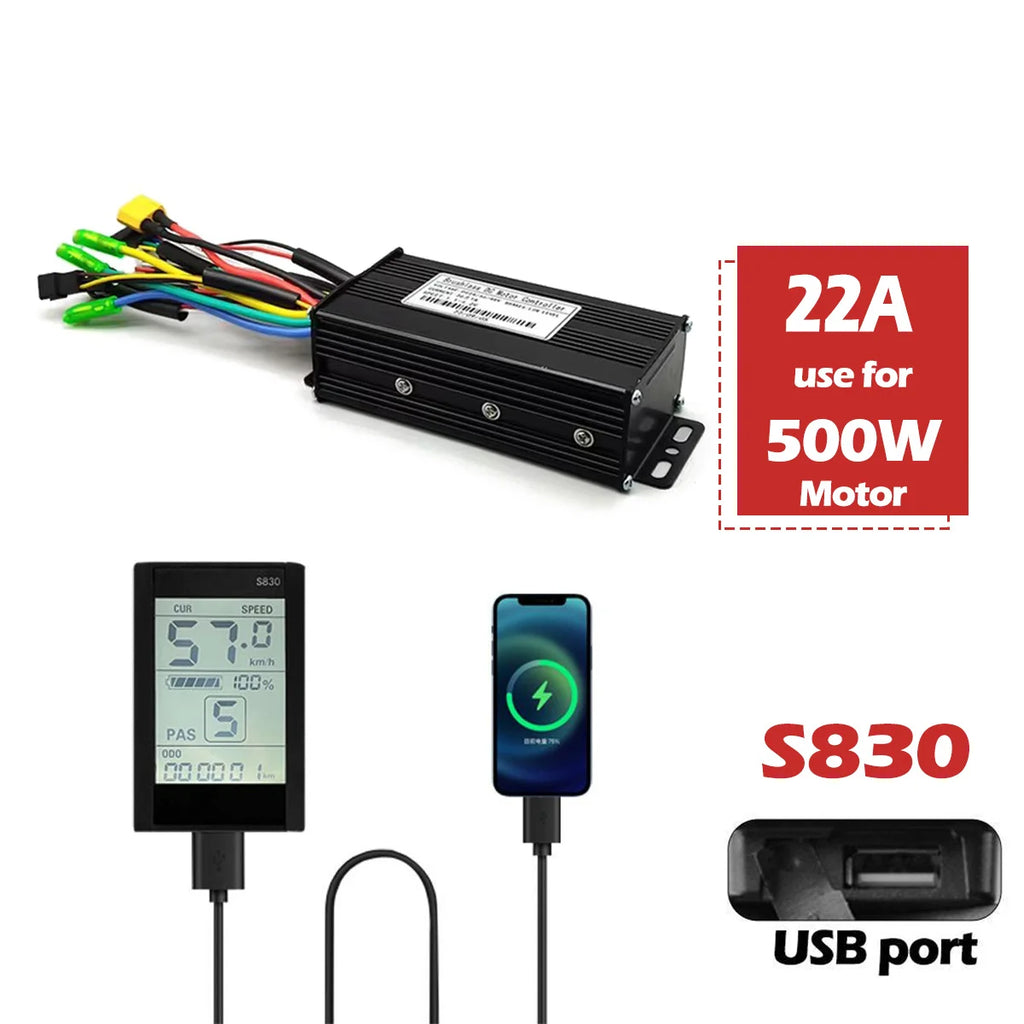

S830 with USB port:

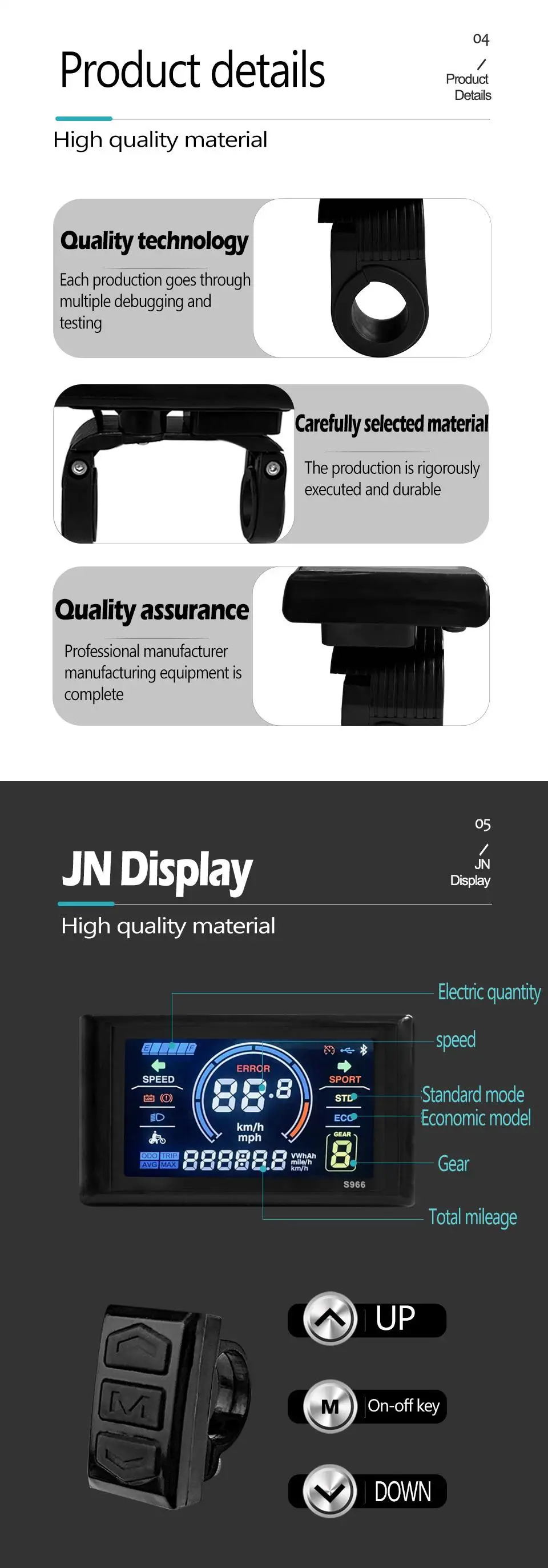

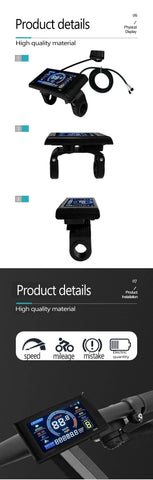

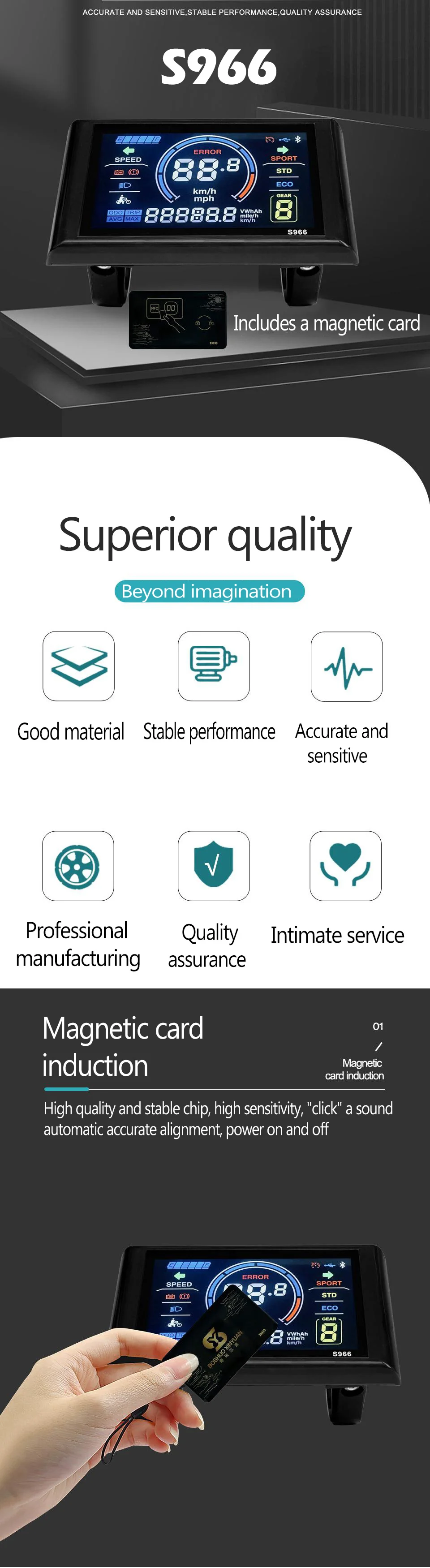

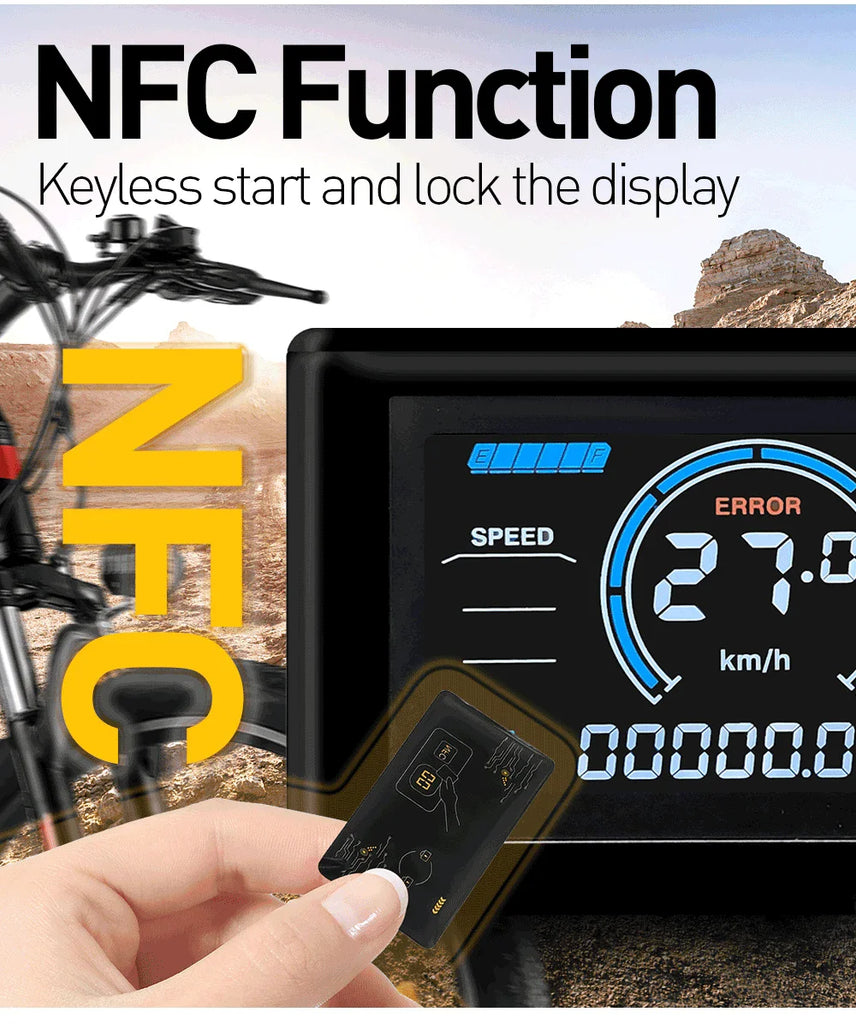

S966 with NFC function:
