The crusher blades undergo forging annealing, heat treatment, tempering, cutting, and precision grinding.
SPECIFICATIONS
Brand Name: LanYuXuan
DIY Supplies: Electrical
Electronic: No
High-concerned chemical: None
Origin: Mainland China
core components: Motor
dimension(l*w*h): 2900(L)X1360(W)X2120(H)
key selling points: Easy To Operate
machinery test report: Provided
plastic type: all plastic
power (kw): 22
shaft design: Double
use: fiber wood hard wood wet tree branch industrial
video outgoing-inspection: Provided
voltage: 220V/380V/415V/600V or customized
warranty: 1 Year
weight (t): 2.4
Welcome to Lucy's Store
(𝐖𝐡𝐚𝐭𝐬𝐚𝐩𝐩 +𝟴𝟲 𝟭𝟴𝟭𝟳𝟯𝟭𝟵𝟭𝟲𝟴𝟱)
Note: Please send me a message before purchasing to confirm the accurate product price and shipping cost. The product price depends on the configuration you choose, and the shipping cost depends on your shipping address and postal code. Please contact me in advance to confirm everything before placing your order to avoid any inconvenience caused by incorrect pricing or order configuration!
Have a nice day!
Email: 2372413784@qq.com
Wechat: HHHbuxi
Its core use lies in:

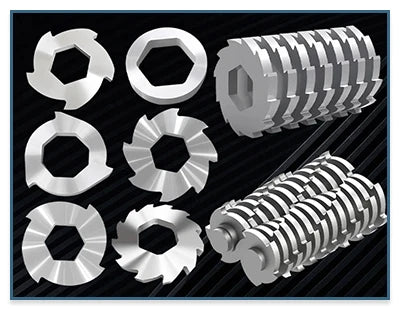

01 Blade
02
Durable Cutter
▪ Blades are made of high-strength alloy tool steel, with high hardness, good abrasion resistance, and long durability. ▪ Adopted hexagon socket screw installation way of the blades and strong wear resistance. ▪ Material: CR12MOV, hardness in 57-59°
Detachable screen with a hole diameter of 5-6mm, and evenly crushed particles

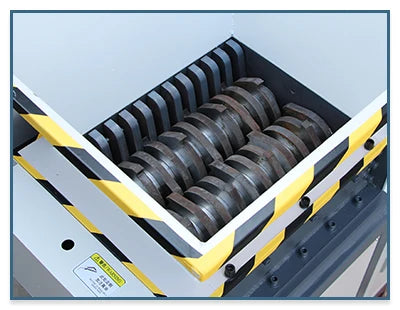

04
Crushing Chamber
The shredder housing consists of blades, spacers, shafts, housing plates, fixed blades, and spacers.

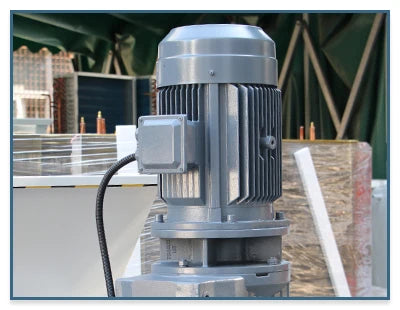

05
motor
Products Description
◎
Motor + reducer drive system, low speed and high torque, strong crushing capacity;
◎Use alloy steel tools, which are wear-resistant, durable, and have a long service life；
◎The knife box has fixed knives on both sides to prevent material entanglement. It can be independently disassembled for easy maintenance.
◎PLC control system, current monitoring, overload protection, automatic reversal, protection of motor and cutting tools;
Application Range
◎Household waste - household waste, municipal waste, sanitation waste;
◎Paper mill waste - paper mill plastic, plastic film, paper mill waste;
◎Biomass - wooden pallets, straw and corn stalks, traditional Chinese medicine herbs;
◎Organic waste - market waste, fruit and vegetable waste, kitchen waste;
◎Industrial waste - Paint cans, metal drums, thinner drums;
◎Electronic waste - Used hard drives, USB drives, computer monitors;
◎Scrap materials - Used shoes, fabric, clothing, leather scraps;
◎Plastic - Nylon material, plastic caps, plastic containers, PET bottles, etc.;
◎Paper mill waste - paper mill plastic, plastic film, paper mill waste;
◎Biomass - wooden pallets, straw and corn stalks, traditional Chinese medicine herbs;
◎Organic waste - market waste, fruit and vegetable waste, kitchen waste;
◎Industrial waste - Paint cans, metal drums, thinner drums;
◎Electronic waste - Used hard drives, USB drives, computer monitors;
◎Scrap materials - Used shoes, fabric, clothing, leather scraps;
◎Plastic - Nylon material, plastic caps, plastic containers, PET bottles, etc.;

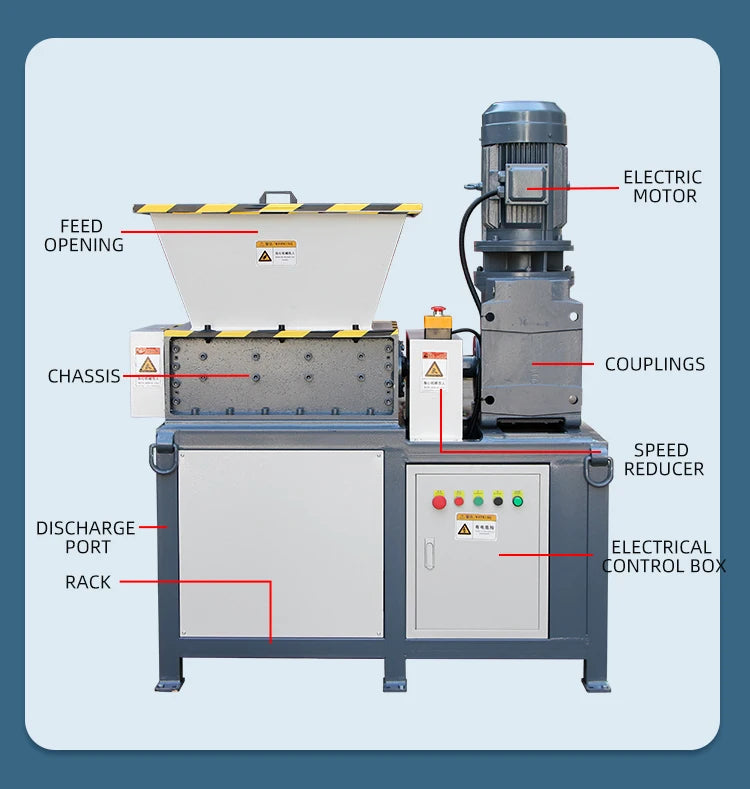

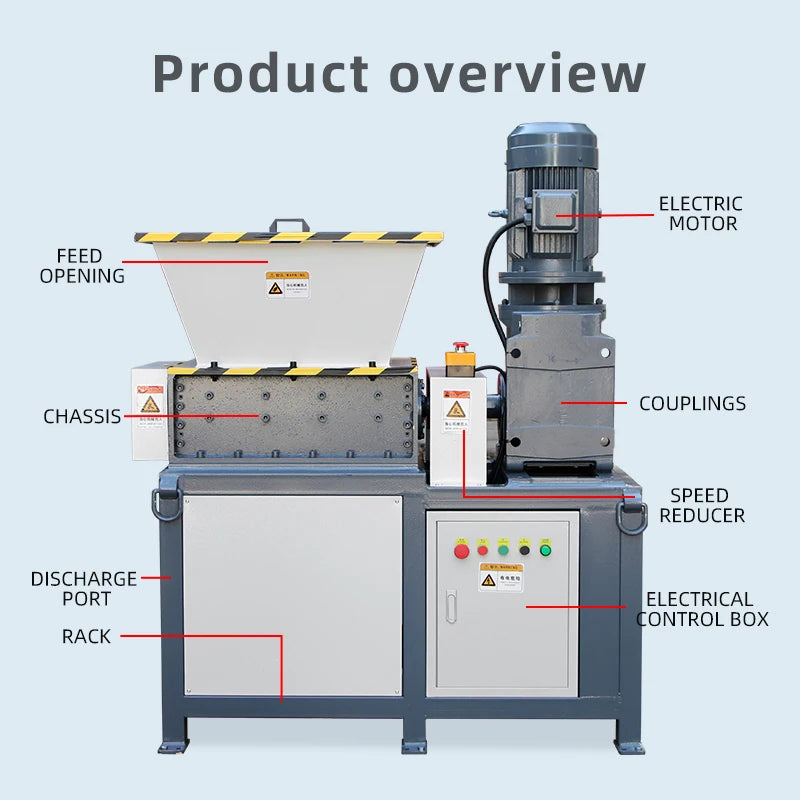

Product Structure Diagram

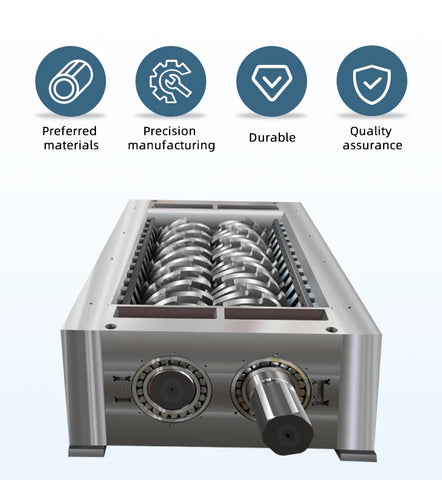

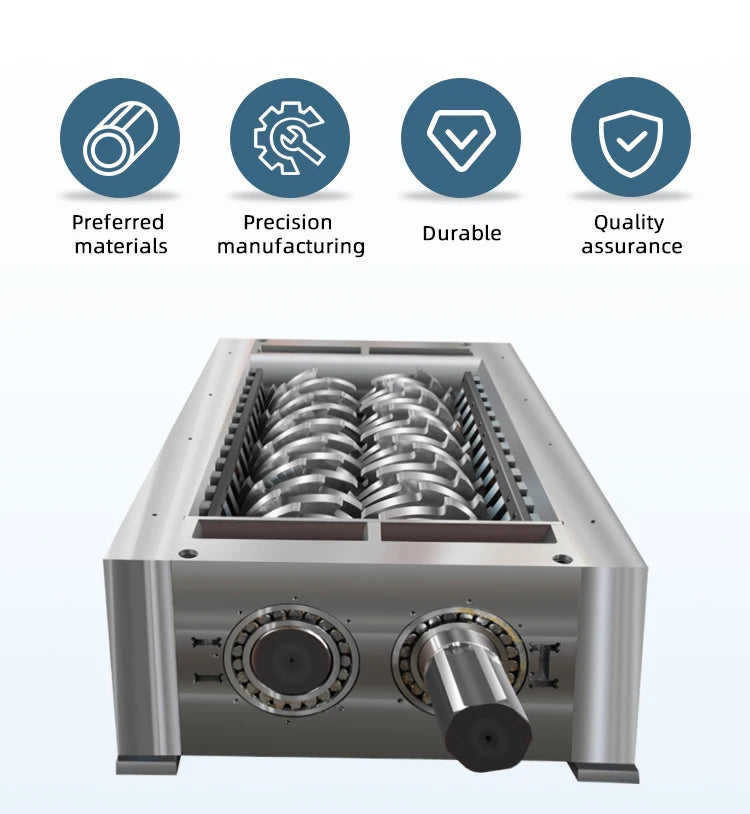

Shredder knife chamber
The integrated chassis is heat-treated and machined with high precision, resulting in high mechanical strength and precision. It is resistant to deformation, has a stronger load-bearing capacity, a longer service life, and is stable and durable.

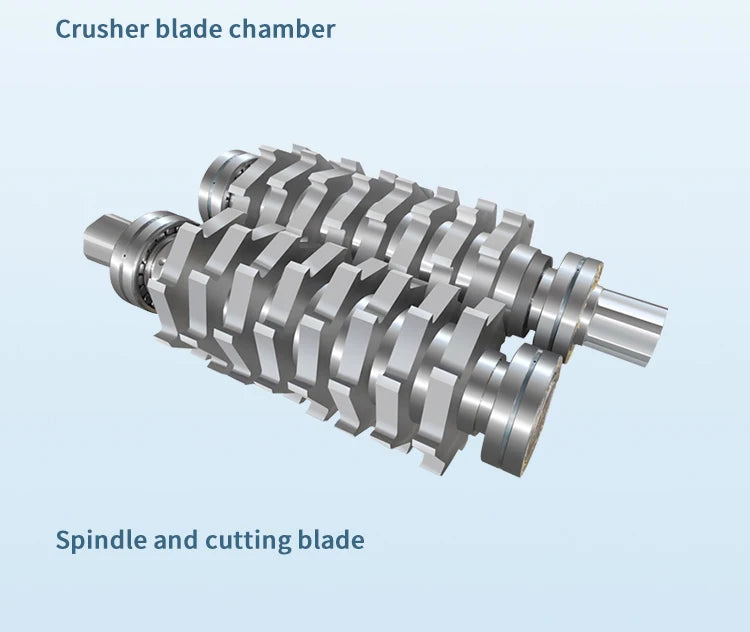

High-strength alloy spindle and blades
High precision/high strength/wear resistance/high temperature resistance/good rigidity
Product parameters
|

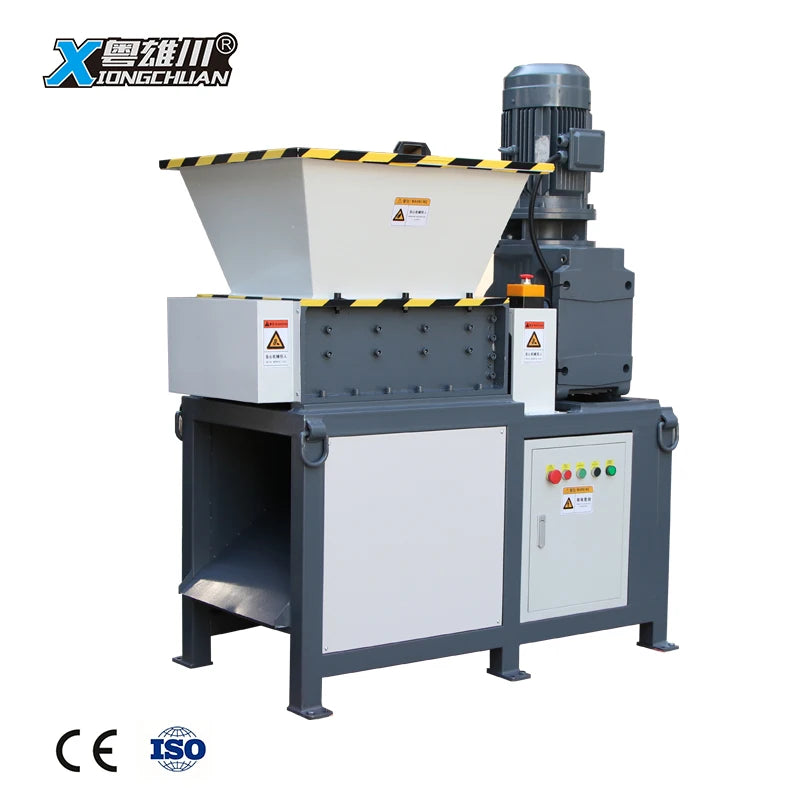

Small Double Shaft Shredder
|
||||||||||
|
Model
|
|
EB180
|
EB300*200
|
EB400*200
|
EB500*250
|
|||||
|
Electric Motor
|
KW
|
1. 5KW-4
|
3KW-4
|
4KW-4
|
7.5KW-4
|
|||||
|
Gear reducer
|
PCS
|
K47
|
JL2#-16
|
JL3#-15
|
JL4#-15
|
|||||
|
Input Speed
|
RPM
|
25
|
16
|
17
|
15
|
|||||
|
Input Torque
|
Nm
|
400
|
1628
|
2919
|
4574
|
|||||
|
Electronic Control
|
Thermal relay protection
|
280
|
280
|
280
|
||||||
|
Shaft Diameter
|
φ35
|
φ75
|
φ75
|
φ90
|
||||||
|
Blade Specifications
and materials
|
φ90*8,9CrSi
|
φ180*12,9CrSi
|
φ180*15,9CrSi
|
φ200*20,9CrSi
|
||||||
|
Number of blades
|
PCS
|
21
|
24
|
26
|
24
|
|||||
|
Feed opening size
|
mm
|
300*300
|
500*500*300
|
500*600*300
|
600*700*400
|
|||||
|
Machine size
|
L/mm
|
590
|
1070
|
1170
|
1420
|
|||||
|
W/mm
|
350
|
680
|
690
|
730
|
||||||
|
H/mm
|
722
|
1550
|
1640
|
1820
|
||||||
|
Weight
|
KG
|
120
|
400
|
500
|
750
|
|||||
Product details
03 Transmission
Components
The shredder motor uses a copper core motor, which reduces energy consumption and has a long service life.
About us

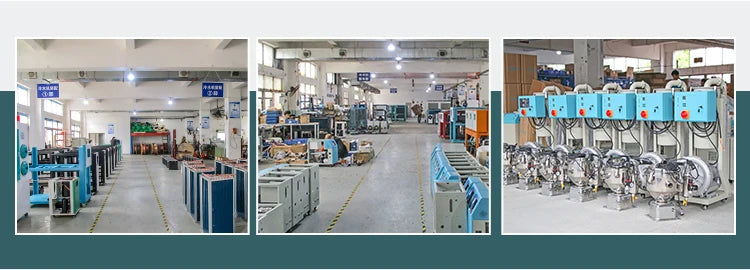

Company Profile
Dongguan Xiongchuan Intelligent Technology Co., Ltd. (referred to as Xiongchuan) is a professional enterprise that develops and produces refrigeration and heating temperature control mechanical equipment, crushing and recycling series, drying and conveying series, mixing and color mixing series, and other equipment. The company was established in 2011. Since its establishment, we have adhered to the principle of taking product quality as the foundation, market demand as the guide, and customer value creation as our responsibility. We are honest, professional, and constantly exploring and innovating, providing a strong guarantee for the continuous optimization of product quality.
Logistics information
FAQ
What is the MOQ?
1 SET Commercial Air Conditioner R22 Modular Air Cooled Water Chiller.
How is the quality of your product?
Our products are produced in strict accordance with national and international standards.We have CE, ISO certification.We rigorously test each product before delivery.
Could you accept customization?
Yes,We accept OEM and ODM.
What is your voltage?
We accept custom voltages from our customers.Such as 400v,208v,380v,220v etc.
How is your price?
We will give a best discount to our customers.
